This plugin facilitates visualization of model geometry and data. It can visualize a number of different geometric shapes, including all of the primitive types supported by the Helios context. Individual geometric objects can be added though API commands, and there is a command to automatically add all geometric primitives from the Helios context.
| Constructors |
|---|
| Visualizer( uint Wdisplay ) |
| Visualizer( uint Wdisplay, uint Hdisplay ) |
The class associated with the visualization is called Visualizer. The class constructor takes one or two arguments that specifies the size of the graphics window. If only one argument is provided (see Visualizer( uint Wdisplay )), the argument is an integer that specifies the width of the diplay window in pixels, with the hight of the window specified according to the default aspect ratio. If two arguments are provided (see Visualizer( uint Wdisplay, uint Hdisplay )), the two arguments correspond respectively to the width and height of the display window in pixels. Below is an example program:
The visualizer uses two types of coordinate systems to specify the locations of points in space during visualization:
In order to actually display a window for visualization, we must issue a comand to plot the geometry. There are different comands to produce a visualization window depending on the intended output:
If plotUpdate() is issued, another command printWindow() can be used to output the current visualization to file (JPEG files only).
The current window can be closed using the closeWindow() command.
Below is an example of opening a window (blank), exporting its contents to file, then closing the window:
The Visualizer supports headless rendering for server environments or automated workflows where no display is available. Headless mode enables all visualization and image export functionality without requiring a graphics display or user interaction.
Enabling Headless Mode:
Headless mode is enabled through the constructor by setting the headless parameter to true:
Key Features:
Important Notes:
Use Cases:
The Visualizer provides multiple options for customizing the window background:
Default Gradient Background
By default, the Visualizer displays a subtle vertical gradient background that transitions from a neutral blue at the bottom to white at the top. This provides a clean, professional appearance without requiring any configuration.
Solid Color Background
The window background can be set to a constant color using the setBackgroundColor( RGBcolor color ) command:
Transparent Background
For creating visualizations with transparent backgrounds (useful for overlaying on other images or presentations), use the setBackgroundTransparent() command. When rendering to the screen, a checkerboard pattern indicates transparency. When exporting to PNG format via printWindow(), the background will have true alpha channel transparency:
Note: Transparent backgrounds only work with PNG output format. JPEG output will have an opaque background.
Custom Image Background
You can set a custom texture image as the background using the setBackgroundImage( const char* texture_file ) command:
The image will be stretched to fill the window while maintaining the aspect ratio to avoid distortion. Both JPEG and PNG formats are supported.
Sky Texture Background
For outdoor scenes, a three-dimensional sky background can be added using the setBackgroundSkyTexture command. This creates a dynamically scaling sky sphere that uses shader-based transformations to keep the camera always inside, eliminating the need to manually specify a radius. The sky appears infinitely distant regardless of camera position or zoom level:
The method automatically uses the default sky texture (plugins/visualizer/textures/SkyDome_clouds.jpg) if no texture file is specified. The sky can be toggled on/off like other background modes using setBackgroundColor, setBackgroundTransparent, or setBackgroundImage.
Next, we will learn how to add objects to the visualization. The visualizer supports the following objects:
Each object can be added by calling one of the associated functions listed in the table above. The syntax is usually fairly similar to how gometry is added in the Helios context, except that you must specify a coordinate system (see Coordinate Systems).
The code sample below gives an example of how to add a horizontal rectangle to the visualizer by providing the coordinates of its center:
The visualizer can automatically import some or all geometry from the Context. This is accomplished using the Visualizer::buildContextGeometry() command. To add all primitives in the Context, the Visualizer::buildContextGeometry() command would be issued, which is passed the Context. We can add a subset of the Context geometry through an additional argument which takes a vector of UUID's.
| Command | Description |
|---|---|
| buildContextGeometry( Context* context_ptr ) | Add all primitives in the Context to the Visualizer. |
| buildContextGeometry( Context* context_ptr, std::vector<uint> UUIDs ) | Add a subset of primitives in the Context to the Visualizer. |
The example below shows how to add all Context geometry to the visualizer.
For large point clouds (tens of millions of points), the visualizer includes automatic culling optimization to maintain interactive performance. This feature is enabled by default when the number of points exceeds a configurable threshold.
The visualizer supports two types of automatic culling:
Point cloud culling can be configured using the following functions:
| Function | Description |
|---|---|
| setPointCullingEnabled( bool enabled ) | Enable or disable automatic point culling. |
| setPointCullingThreshold( size_t threshold ) | Set the minimum number of points required to trigger culling optimization. |
| setPointMaxRenderDistance( float distance ) | Set the maximum distance for point rendering in distance-based culling. |
| setPointLODFactor( float factor ) | Set the level-of-detail scaling factor for distant points. |
| getPointRenderingMetrics(...) | Retrieve real-time performance metrics including total points, rendered points, and culling computation time. |
Example code showing how to configure point cloud culling:
To this point, we have not actually plotted anything in the Visualizer window. A final command is neede to display all of the geometry added to the Visualizer in the window we have opened. There are two functions for doing this, which are detailed below.
The Visualizer::plotInteractive() function can be used to generate an interactive plot of the geometry in the Visualizer. This means that the code will pause to produce the plot/visualization until the window is closed by the user. The user can interact with the plot by issuing keystrokes to, e.g., zoom. An example is given below to generate an interactive plot.
In an interactive plot, the view can be modified via the mouse or keyboard. Note that for very large scenes, mouse-based controls may be laggy.
Mouse camera controls are given by:
| Mouse Button | Action |
|---|---|
| scroll wheel | zoom in/out relative to look-at position |
| left mouse button (+drag) | rotate camera view about look-at position |
| right mouse button (+drag) | move look-at position |
Keyboard camera controls are given by:
| Key | Action |
|---|---|
| up arrow | increase the viewing elevation angle |
| down arrow | decrease the viewing elevation angle |
| left arrow | rotate camera left (clockwise) |
| right arrow | rotate camera right (counter-clockwise) |
| spacebar+up arrow | move the camera position upward |
| spacebar+down arrow | move the camera position downward |
| + | zoom in |
| - | zoom out |
The Visualizer::plotUpdate() function simply updates the plot window based on current geometry, and continues on to the next lines of code. This can be useful if only a still image is to be written to file, as illustrated below.
The surfaces of primitives are most commonly colored by specifying an r-g-b/r-g-b-a color code when adding the geometry, and thus this is the default behavior.
Rectangles and disks have the cabability of coloring their surface according to a texture map. A texture map can be specified by providing the path to either a JPEG or PNG image file. The image will be mapped onto the surface of the primitive element.

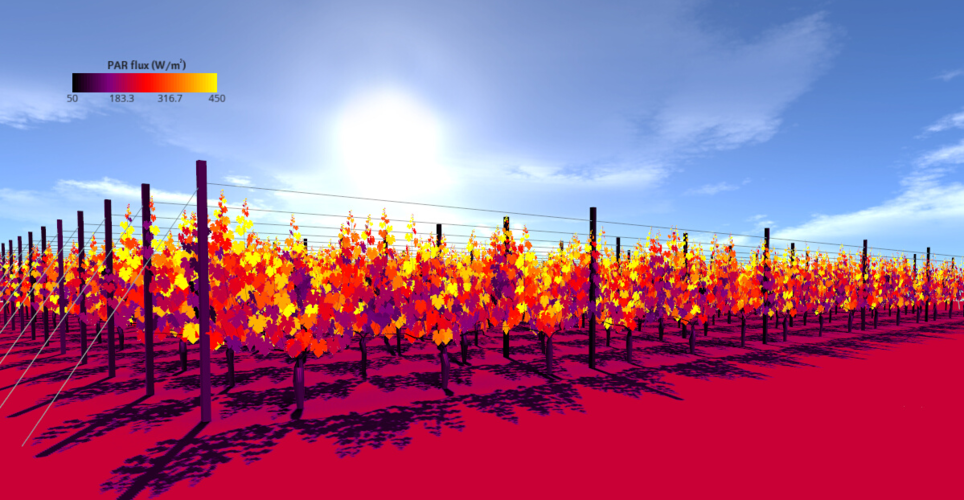

Primitives can be colored by mapping associated data values to a color table. Given some range of data values, each value is normalized by this range and used to look up an associated color in the color table. The available predefined color tables are shown below. There is also the capability of defining custom color tables.
The colormap to be used is set using the following command setColormap( Ctable colormap_name ), where ‘colormap_name’ is one of the enumerations in the table above. For example, to set the ‘hot’ colormap one would use:
To set a custom color table, the same command is used with the Visualizer::COLORMAP_CUSTOM argument, plus additional arguments that define the custom color table. These arguments are 1) a vector of r-g-b colors defining various colors in the color table, and 2) a vector of values between 0 and 1 defining the relative positions of the colors in the table. The first position value must always be 0, and the last value must be 1. The visualizer interpolates between colors to populate the full color table. The table below shows how the ‘hot’ color table is defined:
| RGBcolor | relative position |
|---|---|
| (0, 0, 0) | 0 |
| (0.5, 0, 0.5) | 0.25 |
| (1, 0, 0) | 0.5 |
| (1, 0.5, 0) | 0.75 |
| (1, 1, 0) | 1 |
Example code on how to implement the color table creation is given below:
The colorbar is the legend showing how values are mapped to the color table. The table below gives functions for customizing colorbar behavior, including for example its position, size, and visibility.
| Function | Description |
|---|---|
| enableColorbar(void) | Make the colorbar visible. |
| disableColorbar(void) | Make the colorbar invisible. |
| setColorbarPosition( vec3 position ) | Set the position of the colorbar. Note that position.z gives the depth of the colorbar. |
| setColorbarSize( vec2 size ) | Set the size of the colorbar. |
| setColorbarRange( float cmin, float cmax ) | Set the range of data values for the colorbar/colormap. |
| setColorbarTicks( const std::vector<float> &ticks ) | Set locations of data tick along colorbar. |
| setColorbarTitle( const char* title ) | Set the title text displayed above the colorbar. |
| setColorbarFontColor( RGBcolor color ) | Set the color of text in the colorbar. |
| setColorbarFontSize( uint font_size ) | Set the size of the colorbar text in points. |
When custom ticks are not specified using Visualizer::setColorbarTicks, the visualizer automatically generates tick positions and labels using Heckbert's "nice numbers" algorithm. This algorithm selects tick values that are "clean" multiples of 1, 2, or 5 times a power of 10, making the colorbar easier to read.
Adaptive Tick Count: The number of ticks is automatically determined based on the colorbar size and font size to prevent overcrowding. Smaller colorbars will have fewer ticks to maintain readability.
For example:
The tick label formatting automatically adapts based on the data type and range:
The data type (integer vs. float) is automatically detected when calling Visualizer::colorContextPrimitivesByData or Visualizer::colorContextPrimitivesByObjectData.
To allow for more realistic visualizations, the Phong shading model can be enabled. The Phong shading model can be enabled with or without shadows. The shading options and their enumeration for specifying them are detailed in the table below. The appropriate enumeration is passed to the Visualizer::setLightingModel command to enable the specified shading model.
| Shading Model | Enumeration | Example |
|---|---|---|
| No shading is applied. Objects are colored only according to the r-g-b(-a) color code or texture map. | Visualizer::LIGHTING_NONE | |
| Phong shading model | Visualizer::LIGHTING_PHONG | |
| Phong shading model with shadows. | Visualizer::LIGHTING_PHONG_SHADOWED |
If the Phong shading model is used, the position of the light source should be specified. This is accomplished through the Visualizer::setLightDirection( const helios::vec3 &direction ) command, which takes a unit vector pointing toward the light source. The example below shows how to enable the Phong lighting model with shadows, with the light position set according to the position of the sun.
The default camera position is at an elevation angle of 20 degrees and to the North, with the camera looking toward the origin. The distance of the camera from the origin is automatically adjusted to fit all primitives in view.
There are multiple ways of specifying custom camera views. One method involves specifying the (x,y,z) position of the camera, and the (x,y,z) position that the camera is looking at. This is accomplished using the command setCameraPosition( vec3 cameraPosition, vec3 lookAt ).
The other method involves specifying the spherical coordinates of the camera with respect to the (x,y,z) position the camera is looking at. This is accomplished using the setCameraPosition( SphericalCoord cameraAngle, vec3 lookAt ).
